Sub structure

2016-07-12 09:42      Click£ºtimes
Features of Sub structure:

¡ñ Sub-structure is divided into two types such as fast assembly type and lifting type.
¡¡¡¡
¡ñ Fast assembly type structure is applicable to mechanical rig123.net' target='_blank'>drilling rigs, wherein front sub-structure is higher so as to install the standard BOP. However, the rear sub-structure is lower so as to install heavy main draw-works and transmission parts. ¡¡
¡¡
¡ñ The lifting structure is applicable to power-driven drilling rigs. And drilling machine and the equipments on the floor are installed at low position. The derrick will be lifted up as the floor is at low position, then the derrick and the floor will be up completely. The derrick floor is equipped with two hydraulic pressure cylinders at left and right side, which are used for bumper when the floor lifts up and top push force when releasing.

¡ñ Lifting structures can be further divided into double-lifting, continuous lifting, synchronous lifting and vertical & continuous lifting, you can configure it as required.¡¡
¡¡
¡ñ Sub-structures made by our company meet the requirements of API Standard 4F, so that it is allowed to put on an API. label

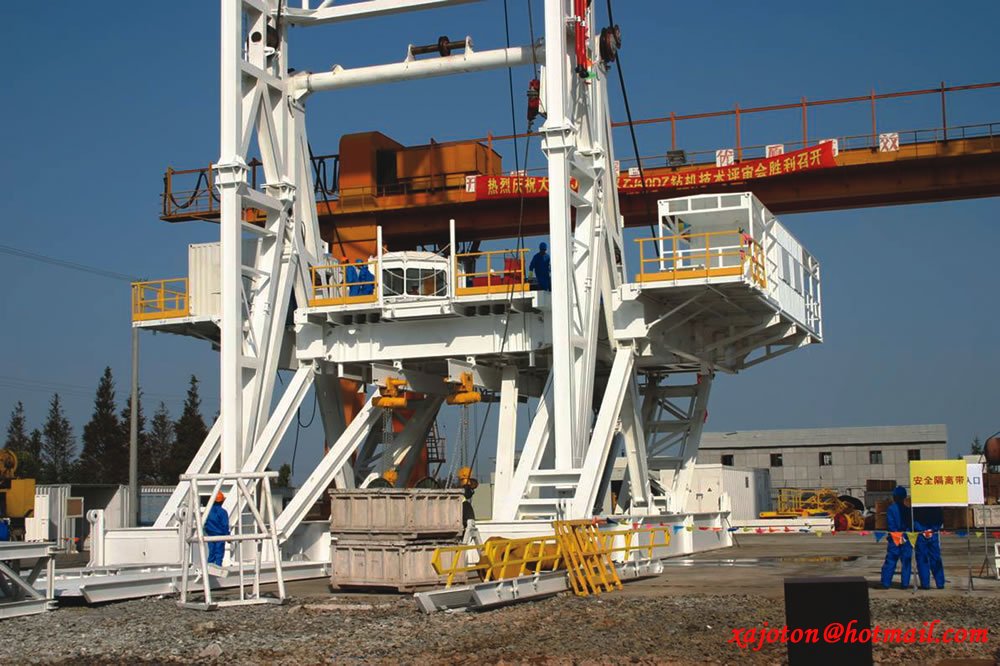

[Click the picture to enlarge]







Performance parameters of Sub structure:

Model
DZ135/4
DZ225/6
DZ225/7.5
DZ225/9
DZ315/7.5
DZ315/9
DZ315/10.5
DZ450/9
DZ450/10.5
DZ450/12
DZ585/10.5
DZ585/12
Height of derrick floor(meter)
4
6
7.5/9
7.5
9
10.5
9
10.5
12
10.5
12
Net height(meter)
3.2
4.76
6.26
7.76
6.12
7.62
9.12
7.42
8.92
10.42
8.72
10.2
Beam load of rotary table(KN)
1350
2250
2250
3150
4550
5850
Setback load(KN)
1000
1150
1150
1600
2200
2880
Maximum static hook load of derrick(K)
1350
2250
2250
3150
4500
5850
Bottom span distance of derrick(meter)
6
7.5
8
9
8
8
9
9
9
Weight(Kg)
44960
93860
101760
114680
142000
160000
206000
150188
207000
229000
220000
247000
