YC90 YC135 YC170 YC225 YC315* YC315 YC450 YC585 Traveling Bl

2016-07-12 10:10      Click£ºtimes
Features of Traveling Block:

¡ñ Side plate of traveling block is made of thick section steel plate so that it is strong enough.. As lifting up and down empty elevator, wire rope is stretched that helps the drum of the drawwork to enwind the wire rope and the down speed of unloaded hook, extend the life of wire rope. The sheave grooves is undertaken middle-frequency quencher so as to extend operating life of sheaves. Working sheaves are assembled with double-conic bearing, wherein each bearing has it’s individual lubricating channel. Besides, sheaves and bearing are interchangeable with it’s matched crown block.

¡ñ Note: 1. It can be designed and configured as the customer’s requirement. 2. YC315* is designed and manufactured according to requirements of Canadian customer..

¡ñ The travelling block meets the API Spec 8C ,is allowed to use the API Monogram.

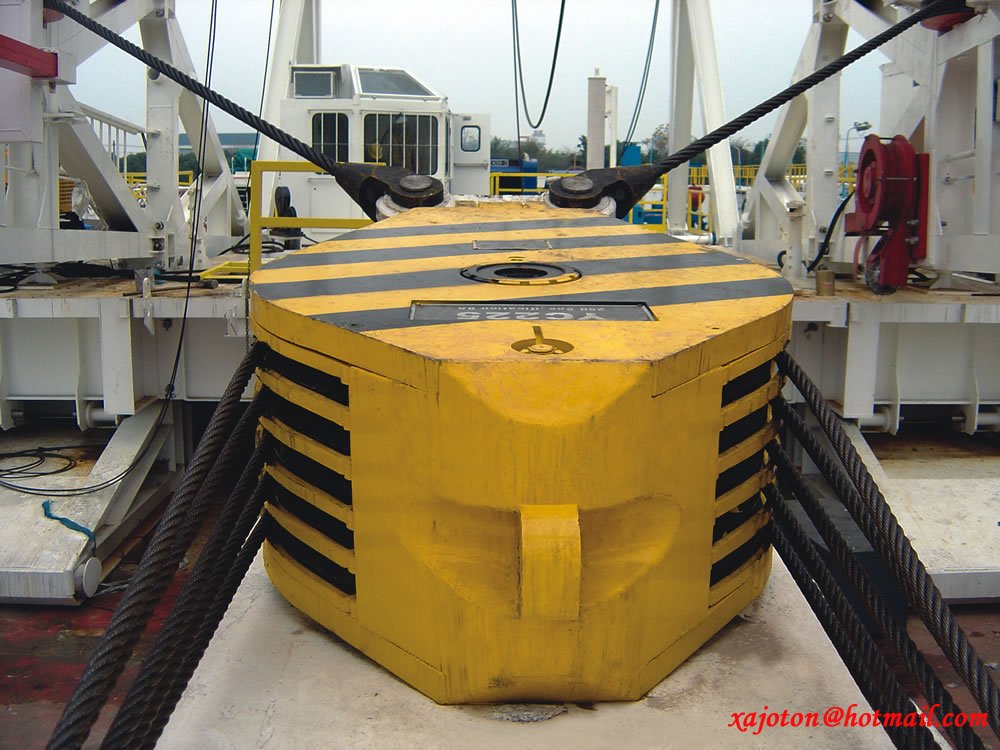

[Click the picture to enlarge]
Performance parameters of traveling block:

Model
YC90
YC135
YC170
YC225
YC315*
YC315
YC450
YC585
Maximum hook load¡¡KN
90
135
170
2250
3150
3150
4500
5850
Sheave OD¡¡mm(in)
762(30)
915(36)
915(36)
1120(44)
1120(44)
1270(50)
1524(60)
1524(60)
Sheave number
4
4
5
5
6
6
6
7
Diameter of steel wire rope mm(in)
25(1)
29(1 1/8)
29(1 1/8)
32(1 1/4)
32(1 1/4)
35(1 3/8)
38(1 1/2)
42(1 5/8)
Dimension£¨L×W×H£©mm
1500×806
×533
1800×960
×610
2100×960
×630
2294×1190
×630
2557×1190
×804
2680×1350
×974
3075×1600
×800
3100×1600
×965
Weight kg
1810
2400
4585
3805
4848
6842
8135
9250
