ZP175 ZP205 ZP275 ZP375 ZP495 rotary table

2016-07-12 10:17      Click£ºtimes
Features of Rotary Table:

¡ñ Large and small gears are all made with alloy steel. Major bushing is casting block. Pin-transmission type can be put in with API standarded roller bushing of square kelly or hex Kelly. Long and short slips are all workable. The rotary table is lubricated fully and securely sealed. The rotary meets API Spec 7K ,so and is allowed to use API sign.

¡ñ Note£ºWe can manufacture the single driving equipment for revised rotary-table.

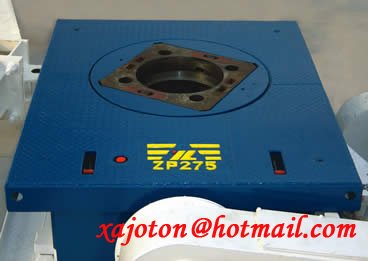

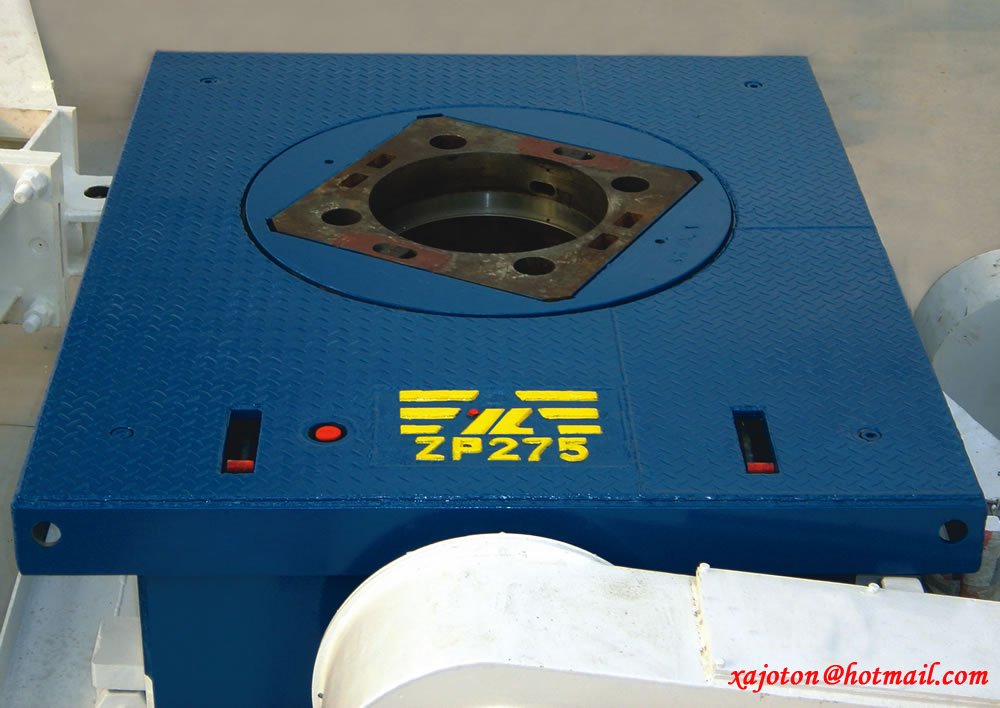

[Click the picture to enlarge]
Performance parameters of rotary table:

Model
ZP175
ZP205
ZP275
ZP375
ZP495
Hole diameter¡¡¡¡mm(in)
444.5(17 1/2)
520.7(20 1/2)
698.5(27 1/2)
952.5(37 1/2)
1257.3(49 1/2)
Center Distance mm(in)
1118(44)
1353(53 1/4)
1353(53 1/4)
1353(53 1/4)
1651(65)
Maximum static load ¡¡¡¡KN
1350
3150
4500
5850
7250
Maximum working torque¡¡Nm
14000
23000
28000
33000
37000
Maximum rotating speed r/min
300
300
300
300
300
Gear transmission ratio
3.58
3.22
3.67
3.56
3.98
Dimension£¨L×W×H£©mm
1935×1280×585
2292×1475×668
2392×1670×685
2468×1810×718
2940×2184×813
Weight¡¡ kg
3888
5530
6200
8026
8950
