1.rig123.net' target='_blank'>Drilling  power tong:

Feature:
ZQ series of power tong is a ideal oil drilling rig tool, applied widely on offshore task, land drilling and workover operation when dissembling string screw thread. The power tong is designed as opening type, includes torque tong and turnbuckle tong, throws off freely the string, has strong mobility and can low the worker’s intensity of labor.








[Click the picture to enlarge]
Technical parameter£º
Model ZQ100 ZQ50 ZQ20
Diameter of pipe applied (in) 3-1/2¡«8 2-7/8¡«5 2-1/2¡«3-1/2
Max.torque (KN/m) 100 65 20
Rotary speed of torque head (rpm) high gear 40 74.7 63
Rotary speed of torque head (rpm) low gear 2.73 5 10
Rated pressure of hydraulic system(MPa) 16.6 14 16
Rated flow rate of hydraulic system (L/min) 114 170 95
Travelling distance of torque head(m) 1.5 1 1
Working pressure of air driving system (MPa) 0.5-1 0.5-1 0.5-1
External dimension (mm) 1700*1000*1400 1570*880*1190 1100*735*985
Weight (kg) 2400 1300 600

¡¡


2.Hydraulic tubing tong

Feature:
1.    Scientific structure, simple operation, convenient maintenance
2.    The complete set of tubing tong is consisted of main tong and backup tong, work together and run flexibly
3.    Main tong is equipped with automatic open fire exit.
4.    Flood valve can regulate the pressure for protection from overload.
5.    The damping mechanism is upper the main tong, which make it adjust conveniently and maintenance.
Rang of application:
For Discharge pipe and gut in oilfield workover operation


[Click the picture to enlarge]
Technical parameter£º
Model QC-120/6 QC-100/3
Tubing applied (mm) 73¡¢89¡¢114 73¡¢89
Rated torque high gear (KN·m) 1.5 1.1
Rated torque low gear (KN·m) 6.0 3.5
Max.rotary speed high gear (Rpm) 80 105
Max.rotary speed low gear (Rpm) 20 32
Opening dimension (mm) 120 100
Total weight (kg) 268 170
Rated system pressure (MPa) 11 10
Max. oil delivery quantity (L/min) 100 100

¡¡

3.TQ series casing tong

Products features

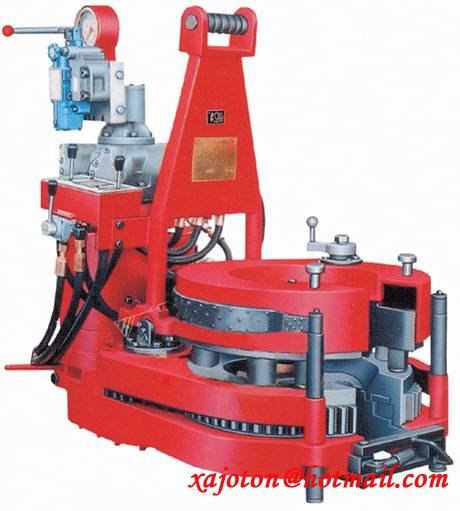

    TQ series of casing tongs are widely used for making-up and breaking-out of casing or pipes .The casing tong features high-efficiency,safety,reliability,labor saving,and ensure connection quality.Tong head is designed as open and equipped with advanced swing-type double jaw assemble which can secure reliable clamping.This series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure,torque and rounds, The tongs are designed and manufactured according to industrial standard SY/T5074 and API Spec 7K ¨”Specification for Drilling Equipment¨•


[Click the picture to enlarge]
Technical parameter£º
  Model TQ178-16 TQ178-16Y TQ340-35 TQ340-35Y TQ356-55 TQ508-70Y

Size Range		 mm 101.6~178 101.6~178 114.3~340 114.3~340 114.3~356 114.3~356
in 4~7 4~7 4 ~13 4 ~13 4 ~14 9 ~20

Max. pressure		 Mpa 18 18 18 21 16.6 20
psi 2610 2610 2610 3045 2407 2900

Working flow		 L/min 110~140 110~160 110~160 110~170 110~160 110~170
gpm 29.3~42.7 29.3~42.7 29.3~42.7 29.3~45.4 29.3~42.7 29.3~45.4

Air pressure		 MPa 0.5~0.9   0.5~0.9   0.5~0.9
psi 72~130 72~130 72~130

Max.
Torque
Hi.gear		 KN·m 2.4~3 2.4~3 2.5~3 4.0~5.6 3.4~4.5 8.4~10.7
ft·lbf 1770~2210 1770~2210 1844~2210 2950~4130 2506~3319 6190~7890

Mid.gear		 KN·m - - 6.0~7.5 - - -
ft·lbf 4425~5530

Lo.gear		 KN·m 14.5~17.5 15~18 32~40 26~35.2 45~57.4 48.9~70.5
ft·lbf 10694~12900 11060~13270 23600~29500 19175~25960 33190~42400 37244~52000

Speed
Hi.gear		 rpm 54~79 54~79 60~86 57~95 52~76 26~43.6

Mid.gear		 rpm - - 21~30 - - -

Lo.gear		 rpm 9~13.1 9~13 3.6~5.3 9~15 3.9~5.6 4~6.6

Szie		 mm 1450×760×740 1500×760×780 1580×900×880 1580×900×860 1590×950×900 2080×1280×760
in 57×30×29.1 59×30×30.7 62.2×35.4×34.6 62.2×35.4×33.9 62.6×35.4×35.4 82×50.4×30

Weight		 Kg 580 560 780 760 850 1550
lb 1280 1230 1720 1670 1870 3410
¡¡

4.Manual tong

Products features
    TQ series of casing tongs are widely used for making-up and breaking-out of casing or pipes .The casing tong features high-efficiency,safety,reliability,labor saving,and ensure connection quality.Tong head is designed as open and equipped with advanced swing-type double jaw assemble which can secure reliable clamping.This series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure,torque and rounds, The tongs are designed and manufactured according to industrial standard SY/T5074 and API Spec 7K ¨”Specification for Drilling Equipment¨•


[Click the picture to enlarge]
Technical parameter£º
NO.of latch
lug jaws		 No.of hinge
Pin hole		 Handle O.D.
mm(in)		 Torque max.
(KN.m)		 Weight£¨Kg£©
1# 1 89-152(31/2 -6) 90 370
2 114-178(41/2 -7)
3 140-210(51/2 -81/4 )
2# 1 203-244(8-95/8 ) 90
2 244-286(95/8 -111/4 )
3# 1 298-324(113/4 -123/4 ) 55
2 340-365(133/8 -143/8 )
4# 2 406-432(16-17) 55

¡¡

5.Air winch

    QJ series of air winch are the drawworks having air driving motor as driving force and hand control. It has small volume, light weight, high efficiency, and simple operation, be safe and reliable. It applies in lifting or hauling heavy equipment respect for land well site, offshore drilling platform, mine drilling.








[Click the picture to enlarge]
Technical parameter£º
Model QJ-0.5 QJL-0.5 QJ-1 QJ-2 QJ-3 QJ-5
Rated tractive effort (KN) 5 5 10 20 30 50
Average rope speed(m/min) 12 12 24 24 20 35
Diameter of wireline (mm) 8 8 11 16 20 20
Rope capacity (m) 120 40 100 150 200 70
Air pressure (MPa) 0.6 0.6 0.6 0.6 0.6 0.6
External dimension (mm) 668*343*420 490*295*370 740*397*542 1000*530*765 1530*745*955 1254*900*989
Weight (kg) 117 45 162 440 685 418
